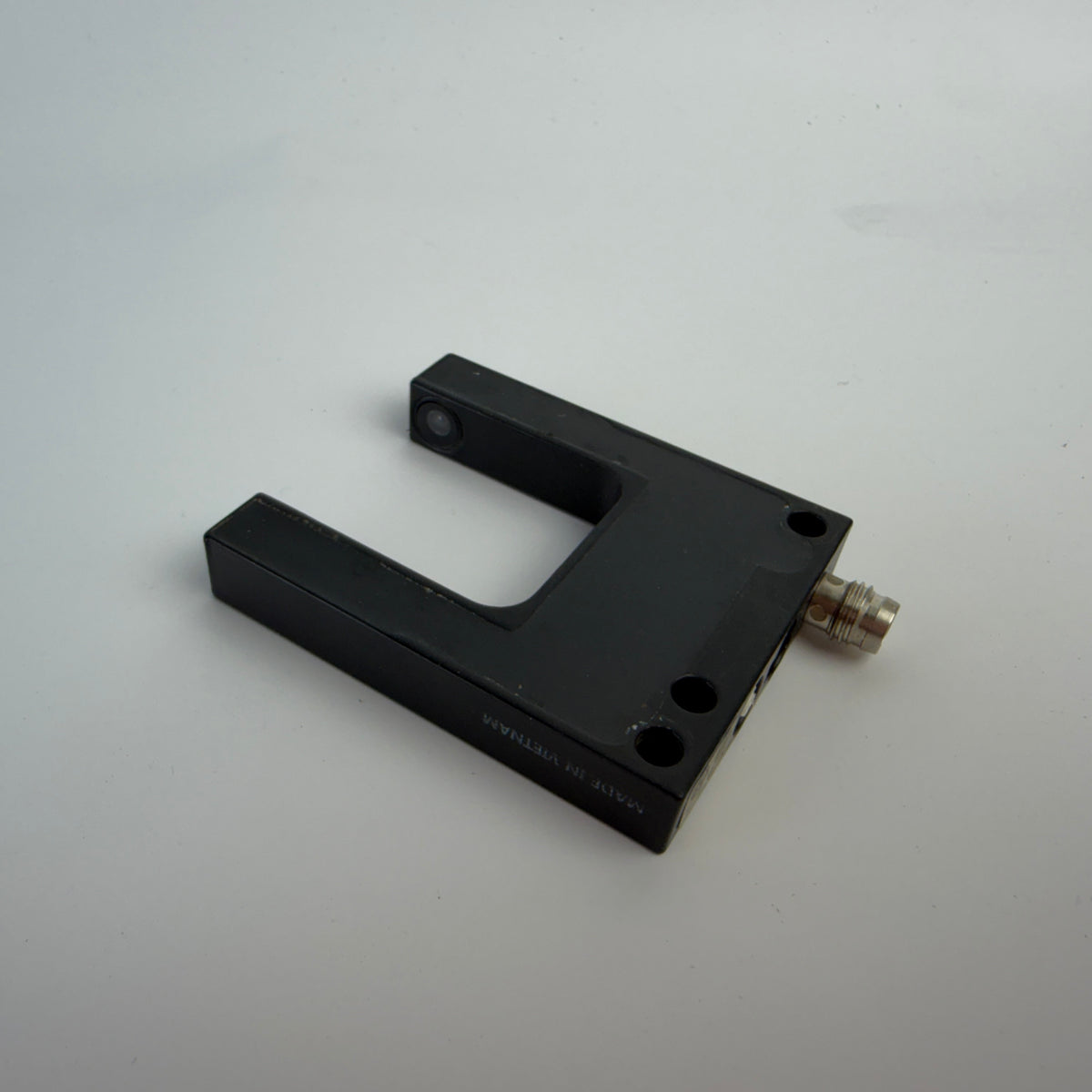

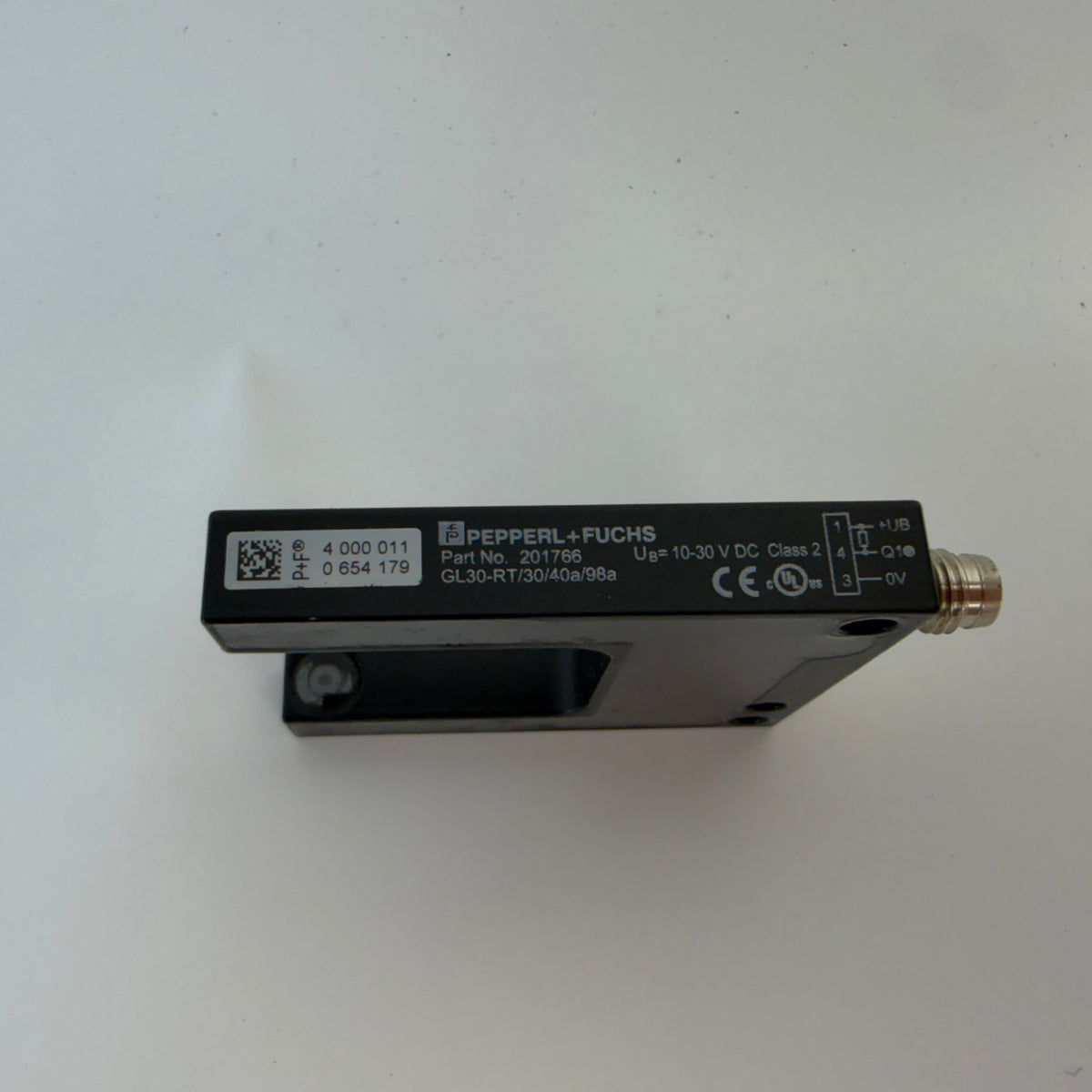

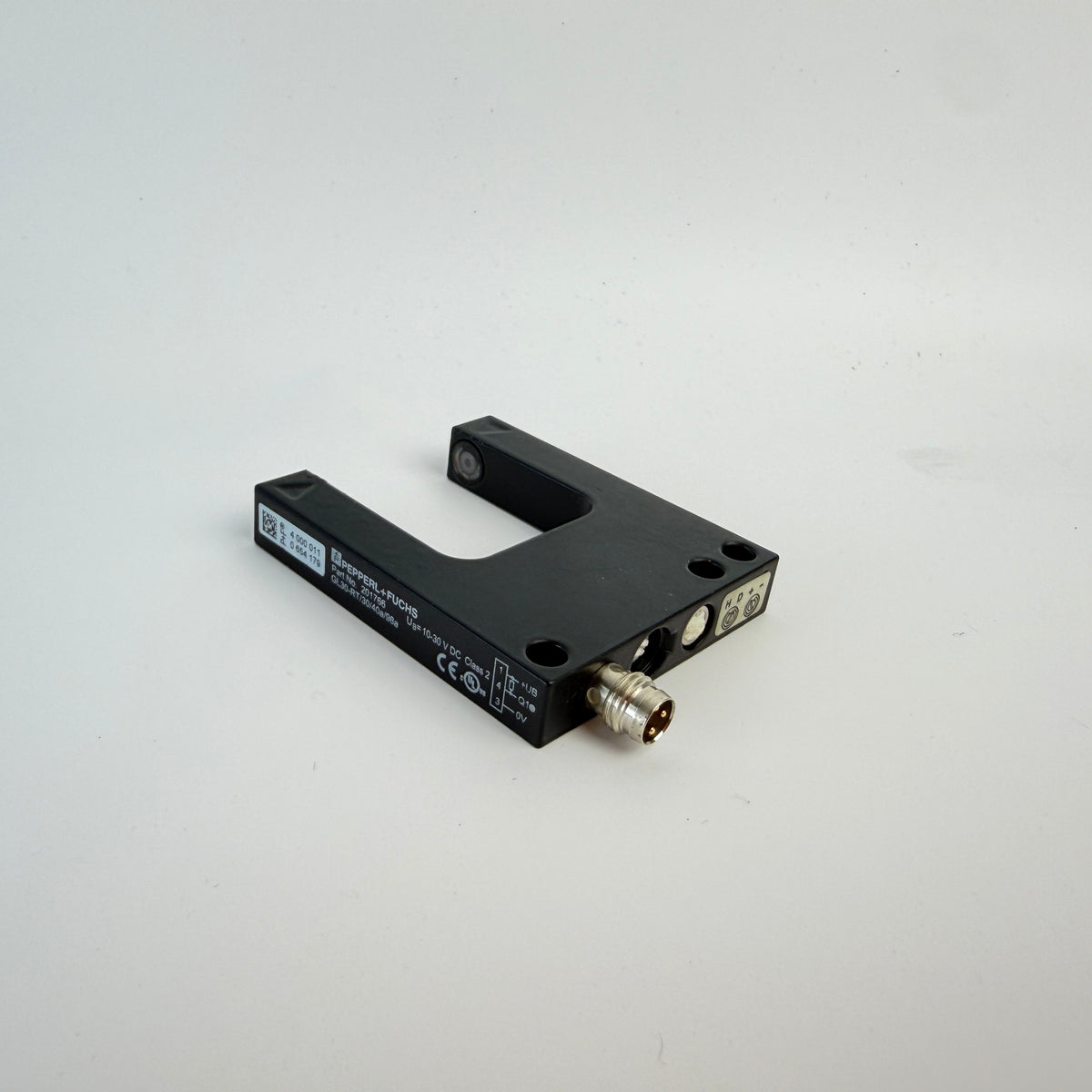

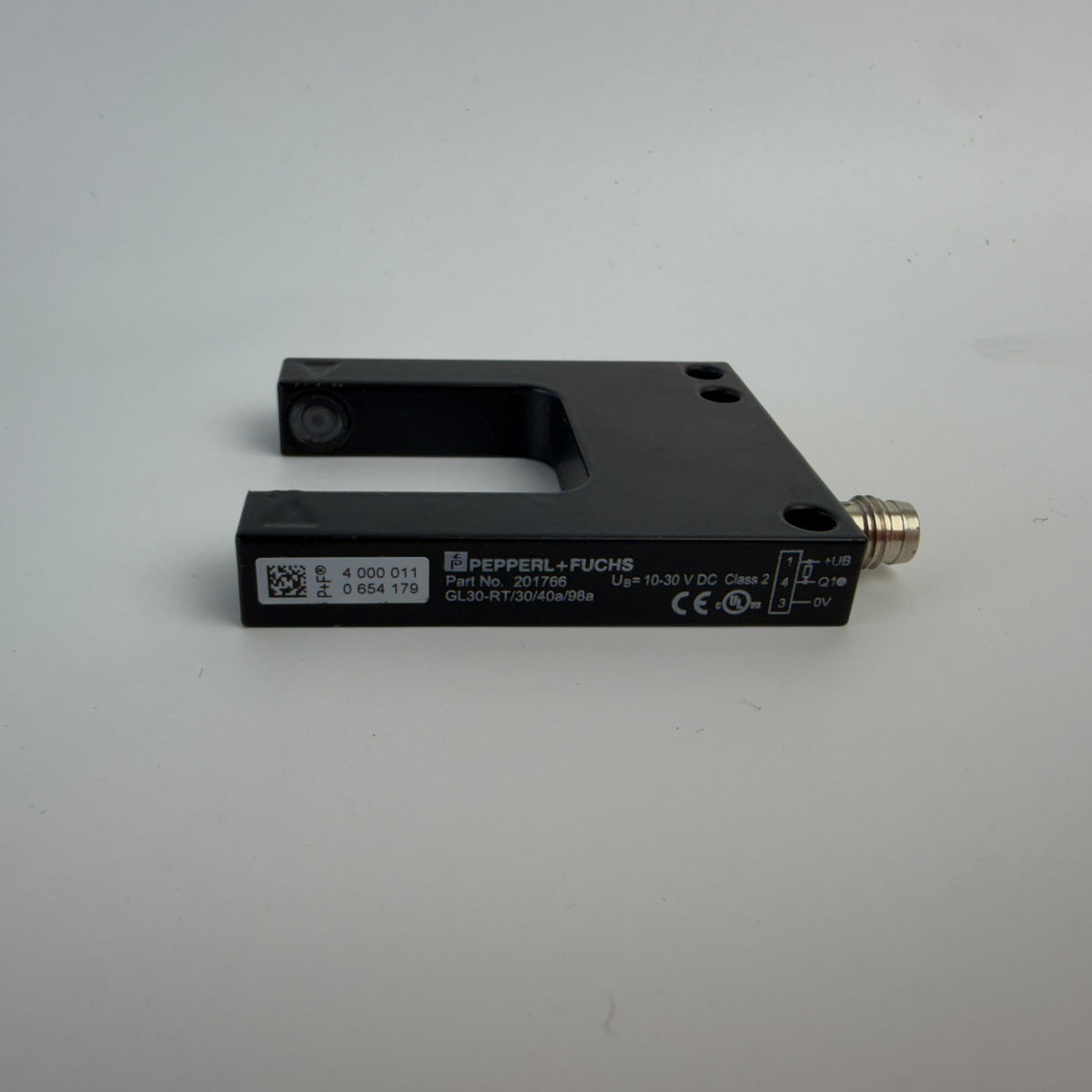

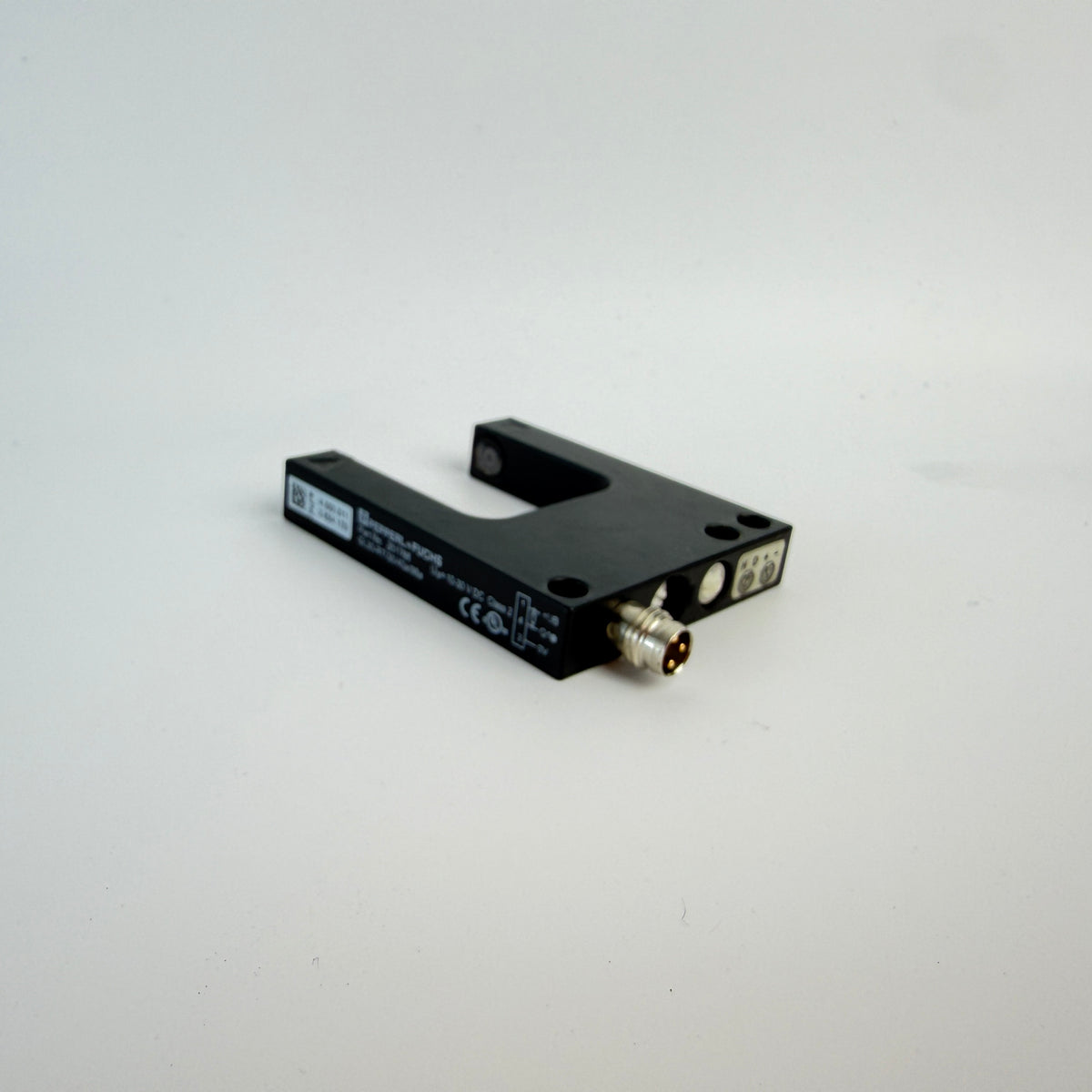

Pepperl+Fuchs GL30-RT/30/40a/98a photoelectric slot sensor, Part No. 201766, designed for reliable detection of small objects in industrial automation and machine applications.
The sensor features a 30 mm slot width, 35 mm slot depth and modulated visible red LED light. It operates from 10–30 V DC and provides a single NPN open-collector output with short-circuit protection.
With a switching frequency of 3 kHz, response time of up to 160 µs, and repeat accuracy of 0.05 mm, the GL30 series is suitable for fast detection and positioning applications.

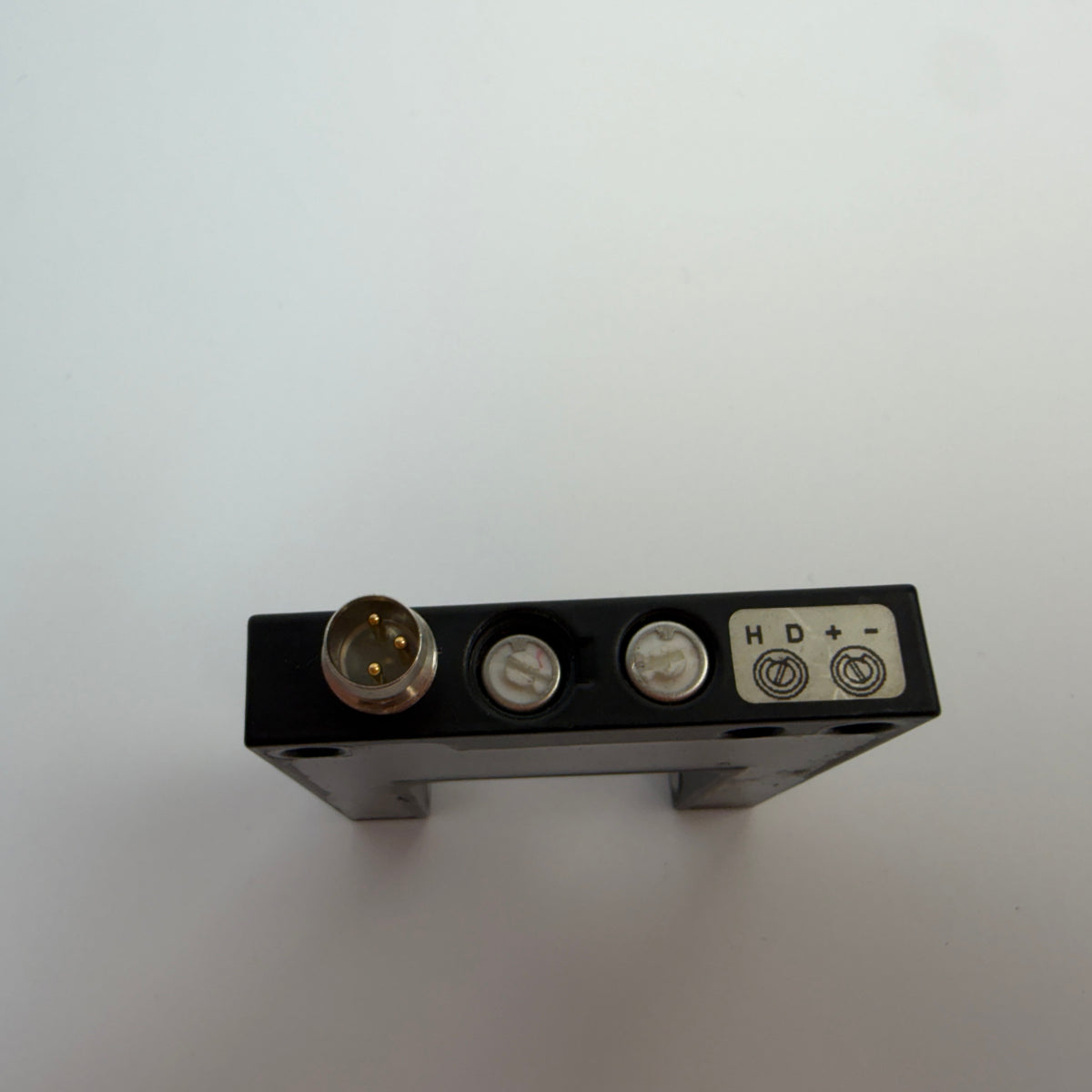

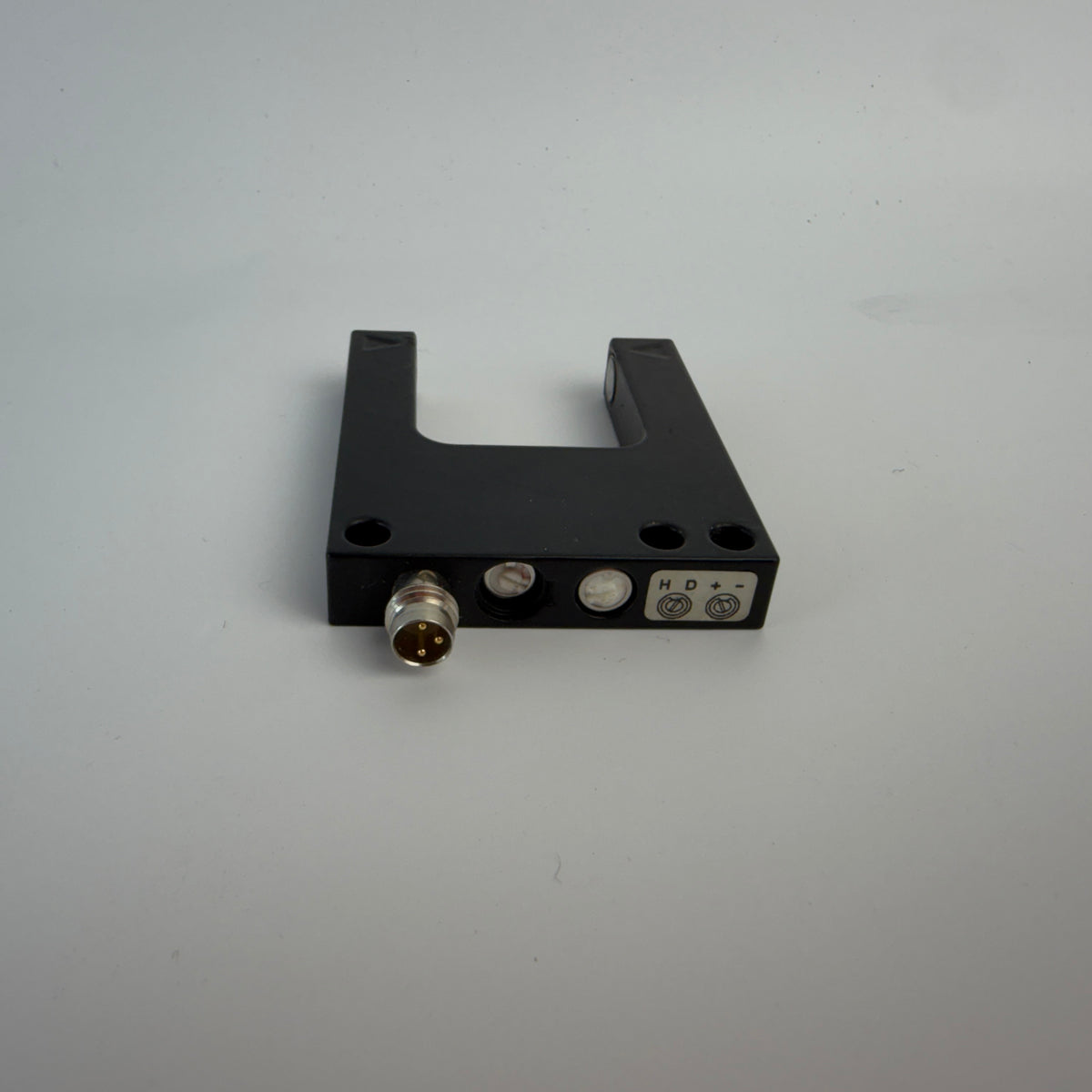

Sensitivity adjustment and light/dark switching are integrated directly into the sensor. Connection is via a 3-pin M8 connector.
Condition: Used, fully functional.
Counteroffers welcome.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Pepperl+Fuchs |
| Model | GL30-RT/30/40a/98a |
| Part Number | 201766 |
| Sensor Type | Photoelectric slot / fork sensor |
| Light Source | LED |
| Light Type | Modulated visible red light |
| Slot Width | 30 mm |
| Slot Depth | 35 mm |
| Target Size | 0.3 mm |
| Operating Voltage | 10–30 V DC |
| No-load Supply Current | ≤15 mA |
| Output | 1 × NPN open collector |
| Output Protection | Short-circuit protected |
| Switching Voltage | Max. 30 V DC |
| Switching Current | Max. 100 mA |
| Switching Mode | Light/dark selectable |
| Switching Frequency | 3 kHz |
| Response Time | ≤160 µs |
| Repeat Accuracy | 0.05 mm |
| Ambient Light Limit | 100,000 Lux |
| Connection | M8, 3-pin |
| Protection Rating | IP67 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +75°C |
| Housing | Powder-coated die-cast zinc |
| Optical Face | Glass |
| Dimensions | 60 × 10 × 50 mm |
| Weight | Approx. 60 g |

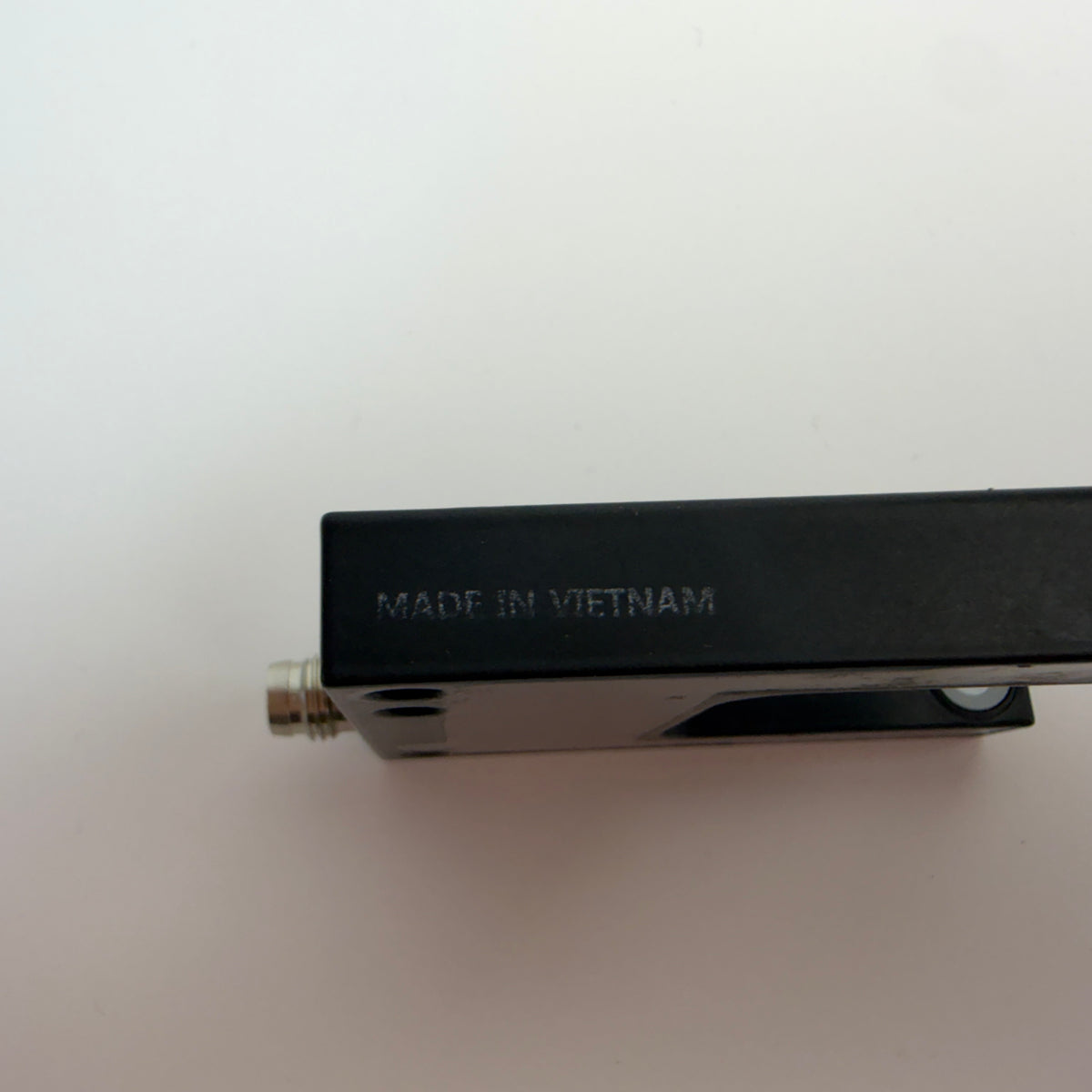

| Country Marking | Made in Vietnam |
Application
Suitable for industrial automation applications requiring fast, precise detection of objects passing through a 30 mm sensor slot, including machine automation, positioning, counting and presence detection.
Package Contents
1× Pepperl+Fuchs GL30-RT/30/40a/98a sensor, exactly as pictured.
