GEORGII KOBOLD KSY 468.20-2 Brushless Servo Motor with Electromagnetic Brake
Industrial brushless servo motor designed for precise motion control, positioning and automated machinery applications.
This unit is identified as KSY 468.20-2, configuration MS-R6/S23/X, with identification number 33 0532 0003.
The motor features a rated speed of 2000 rpm, rated torque of 3.80 Nm and an integrated 24 V DC electromagnetic brake rated at 6 Nm.

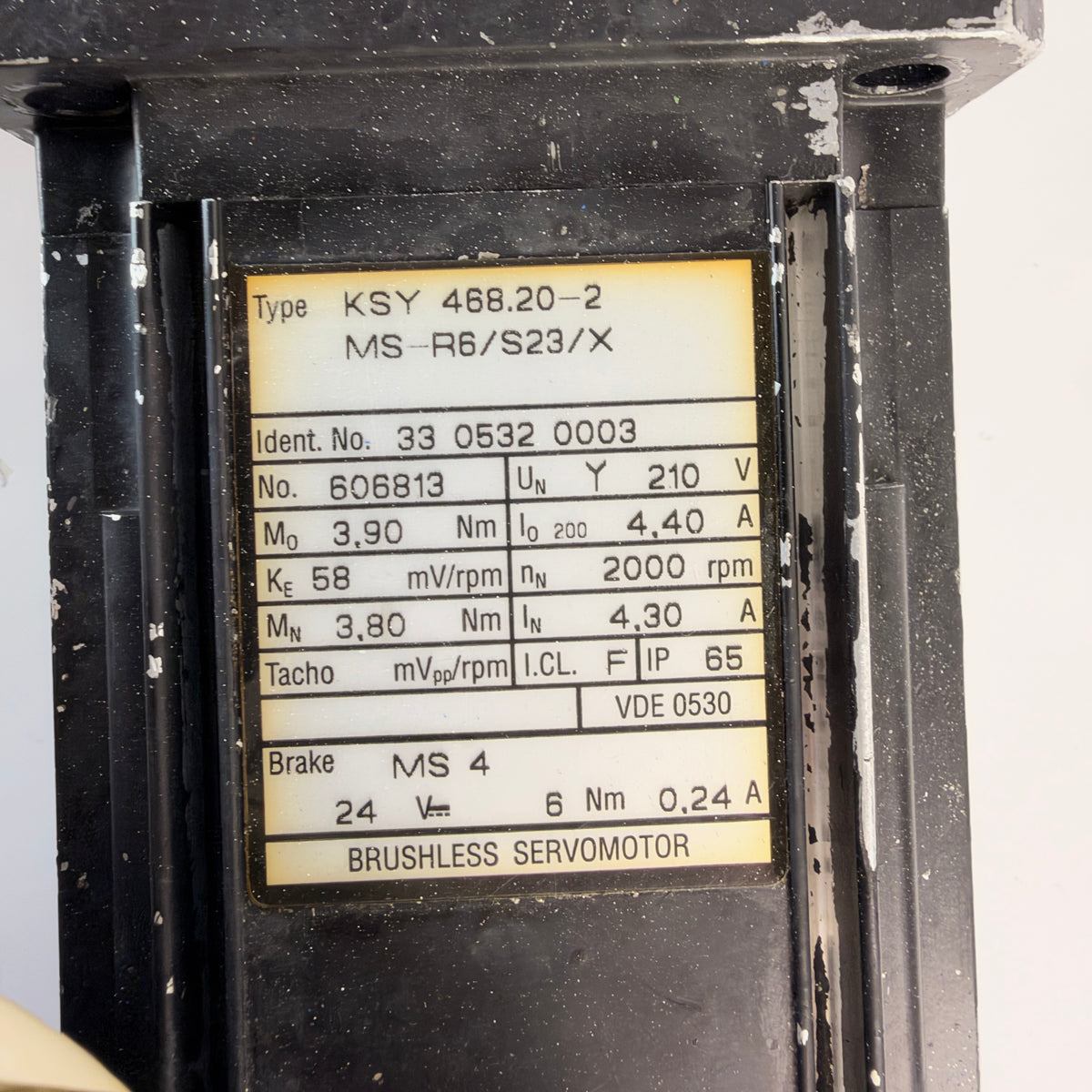

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GEORGII KOBOLD |
| Motor Type | Brushless Servo Motor |
| Model | KSY 468.20-2 |
| Configuration | MS-R6/S23/X |
| Identification Number | 33 0532 0003 |
| Unit Number | 606813 |
| Rated Voltage (UN) | 210 V, Y connection |
| Rated Speed (nN) | 2000 rpm |
| Rated Torque (MN) | 3.80 Nm |
| Standstill Torque (M0) | 3.90 Nm |
| Rated Current (IN) | 4.30 A |
| Current at 200 rpm (I0 200) | 4.40 A |
| Voltage Constant (KE) | 58 mV/rpm |
| Insulation Class | F |
| Protection Rating | IP65 |
| Standard Marked | VDE 0530 |
| Brake Type | MS 4 |
| Brake Voltage | 24 V DC |
| Brake Holding Torque | 6 Nm |
| Brake Current | 0.24 A |
Included Components

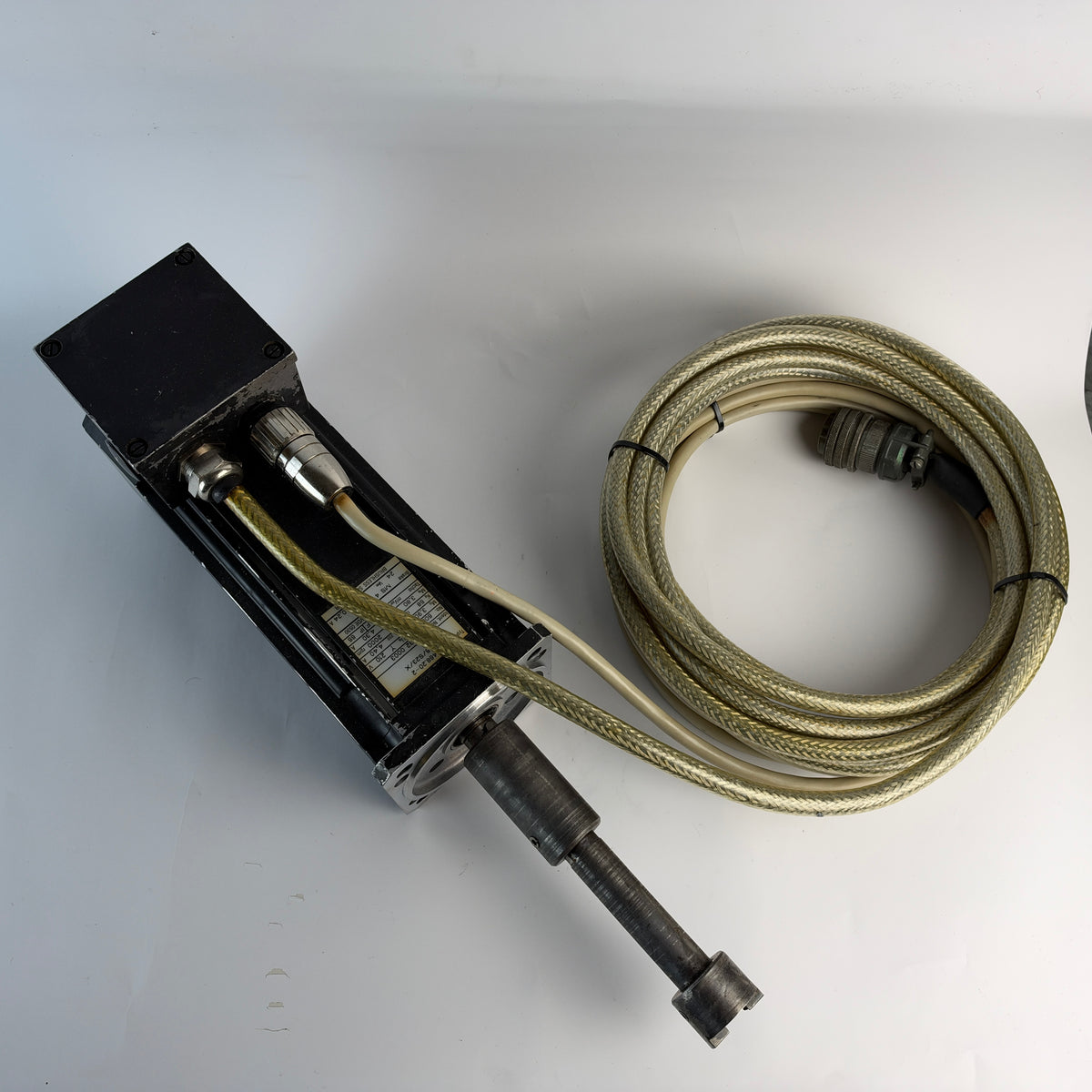

- GEORGII KOBOLD KSY 468.20-2 servo motor
- Integrated MS 4 electromagnetic brake

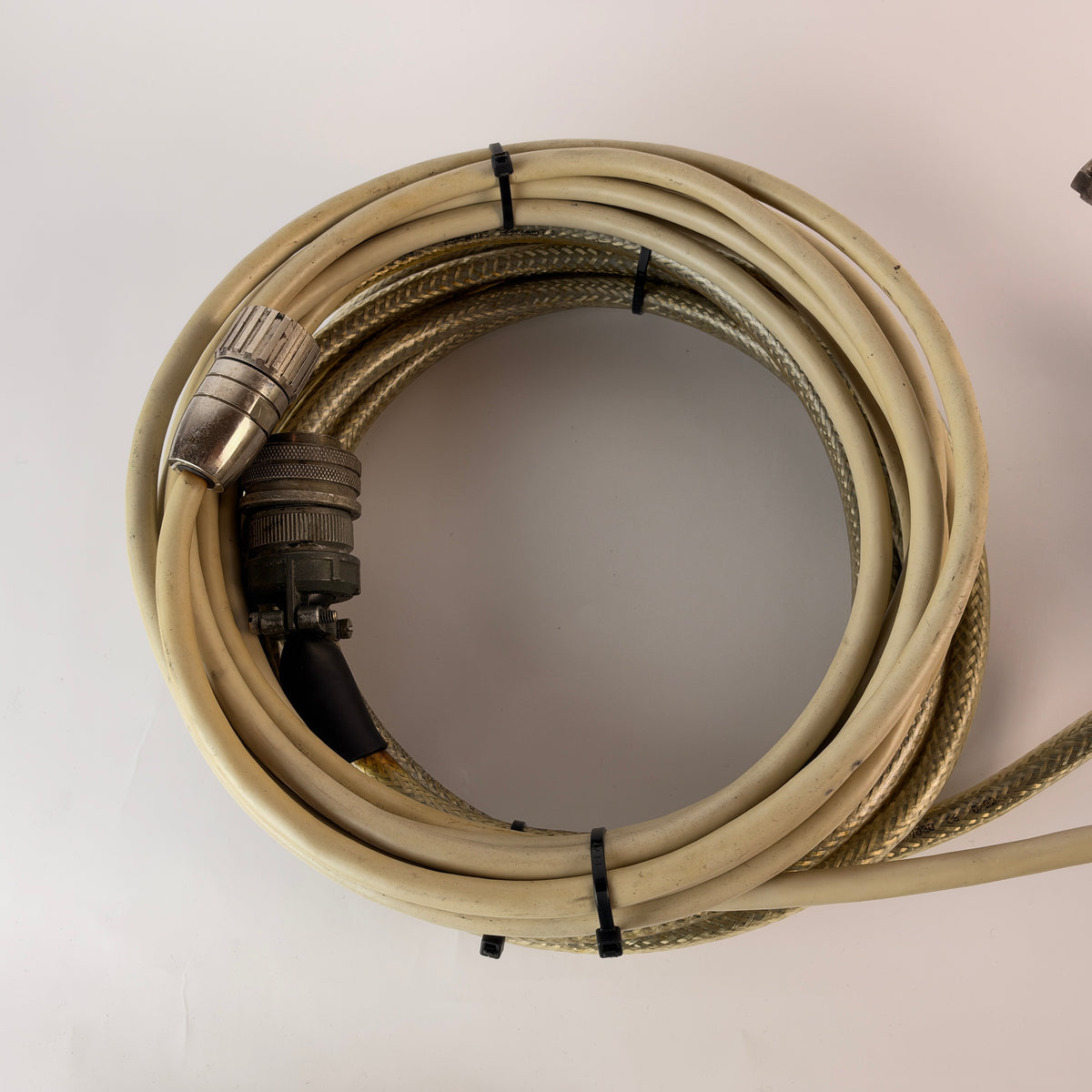

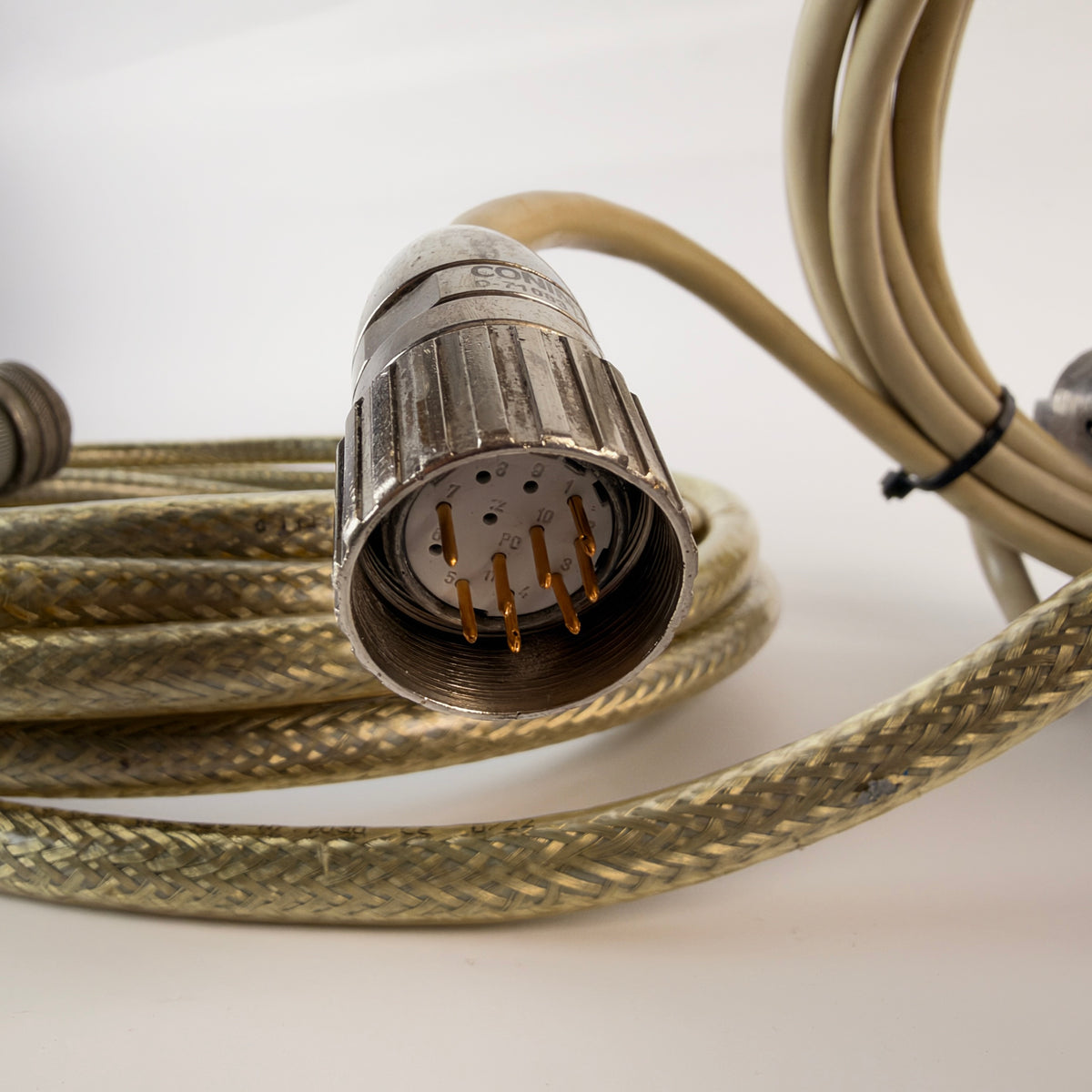

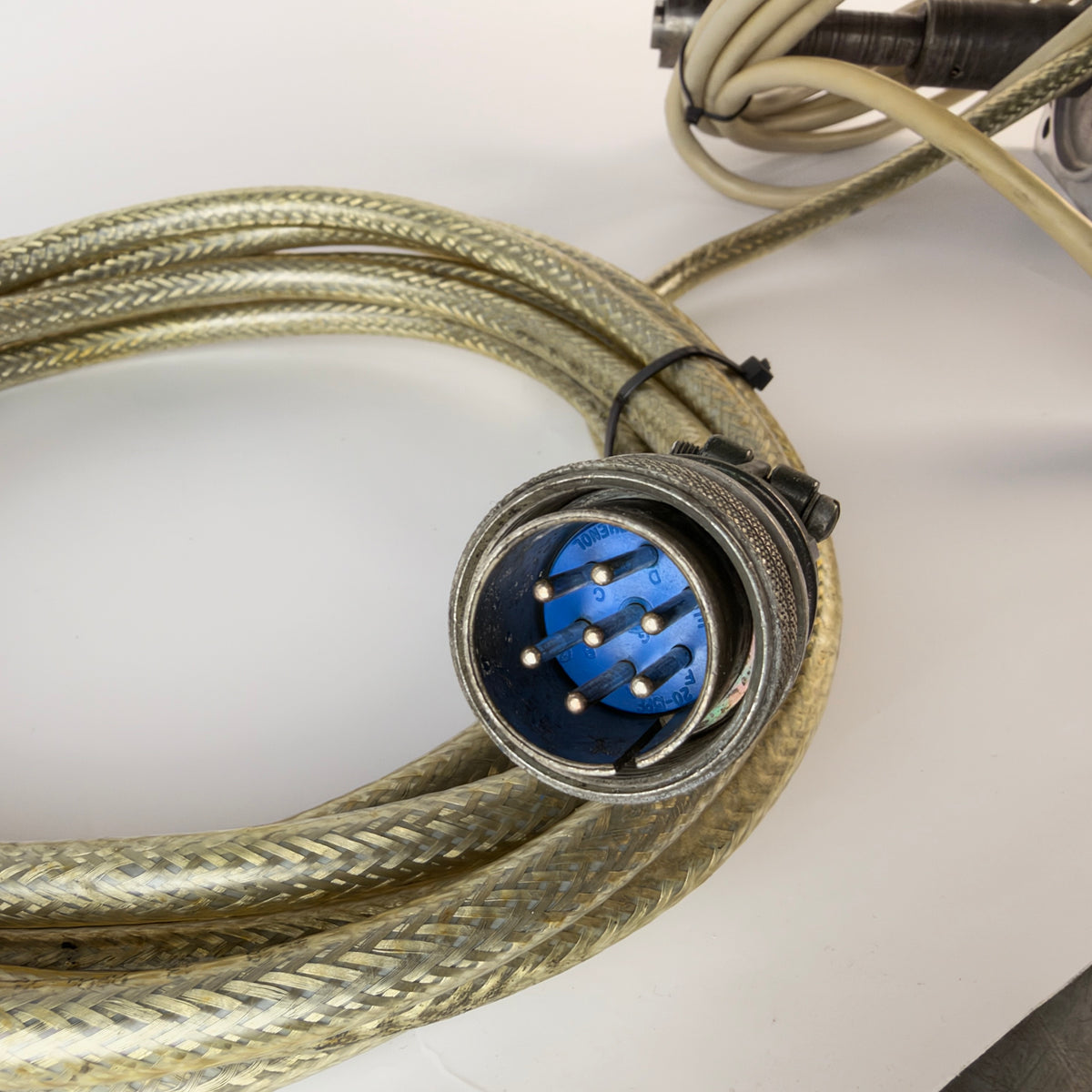

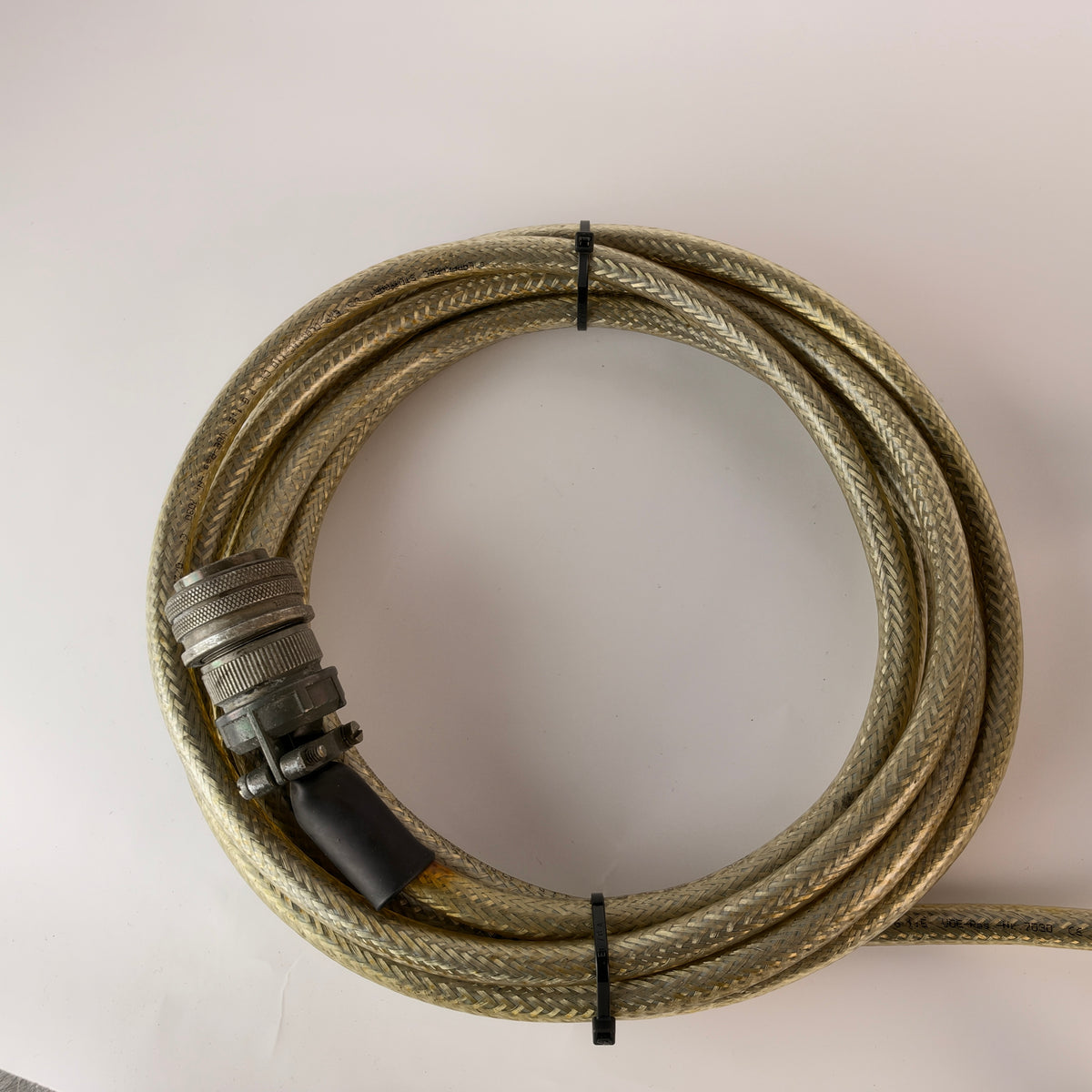

- Attached motor cables with industrial circular connectors

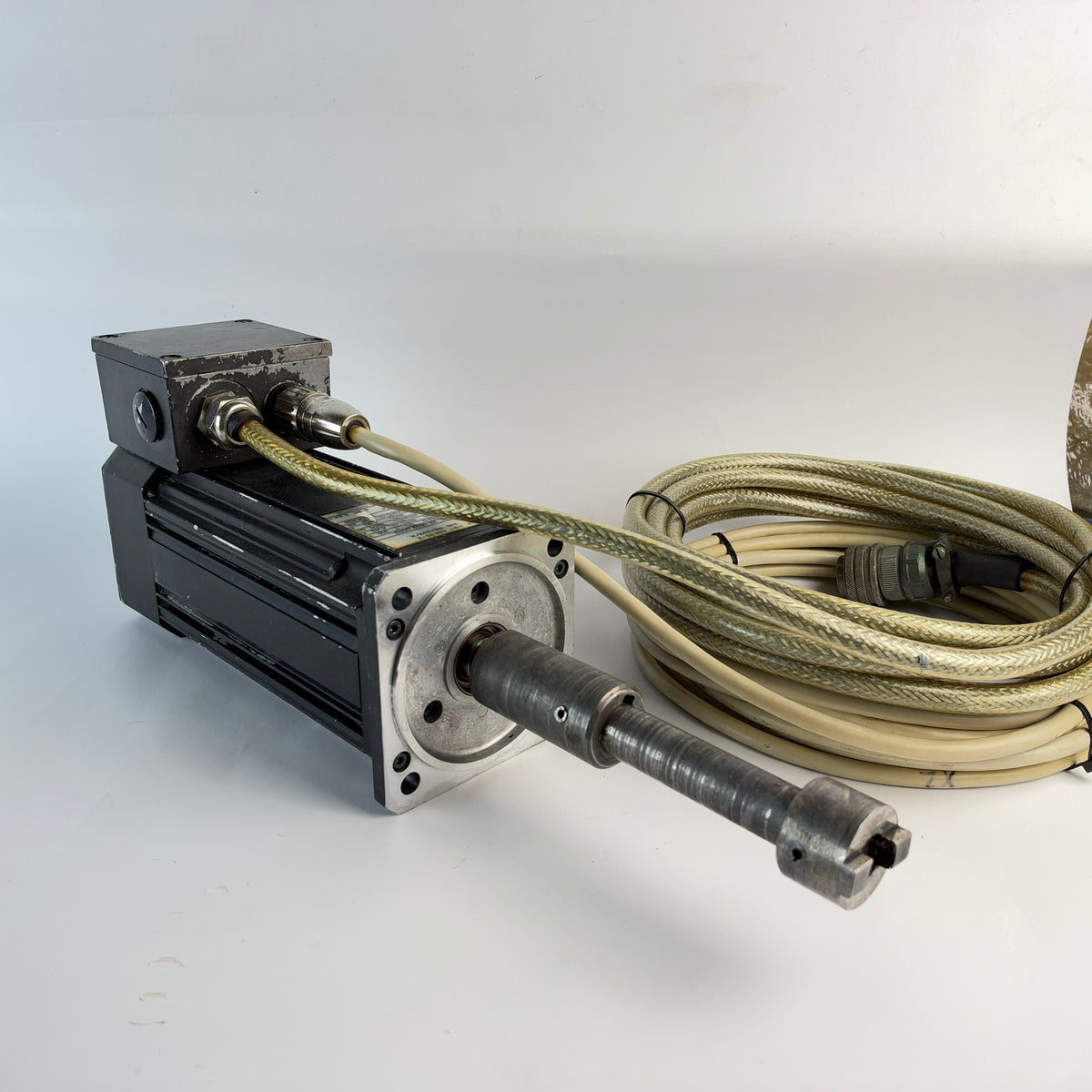

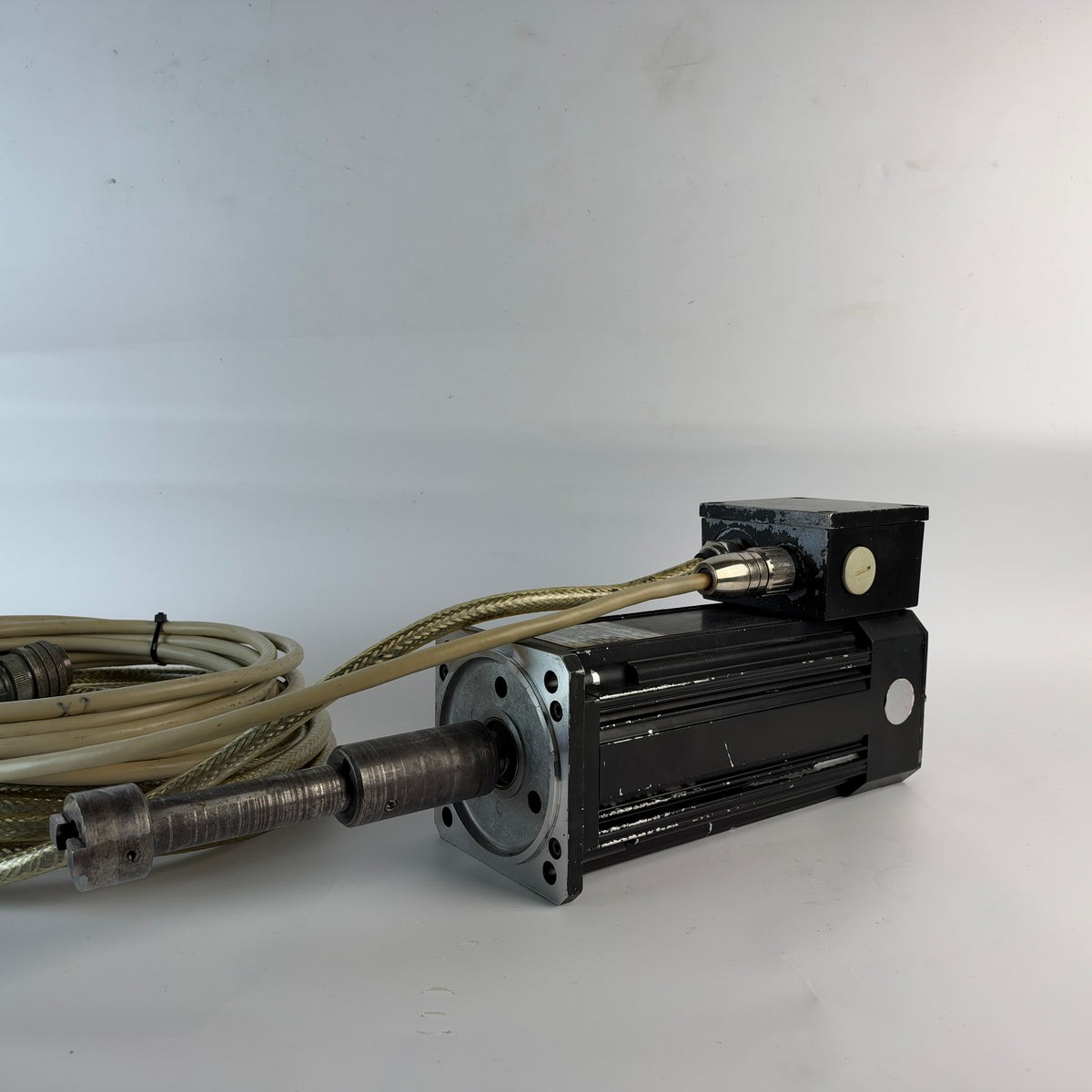

- Extended shaft-mounted mechanical component shown in the photographs

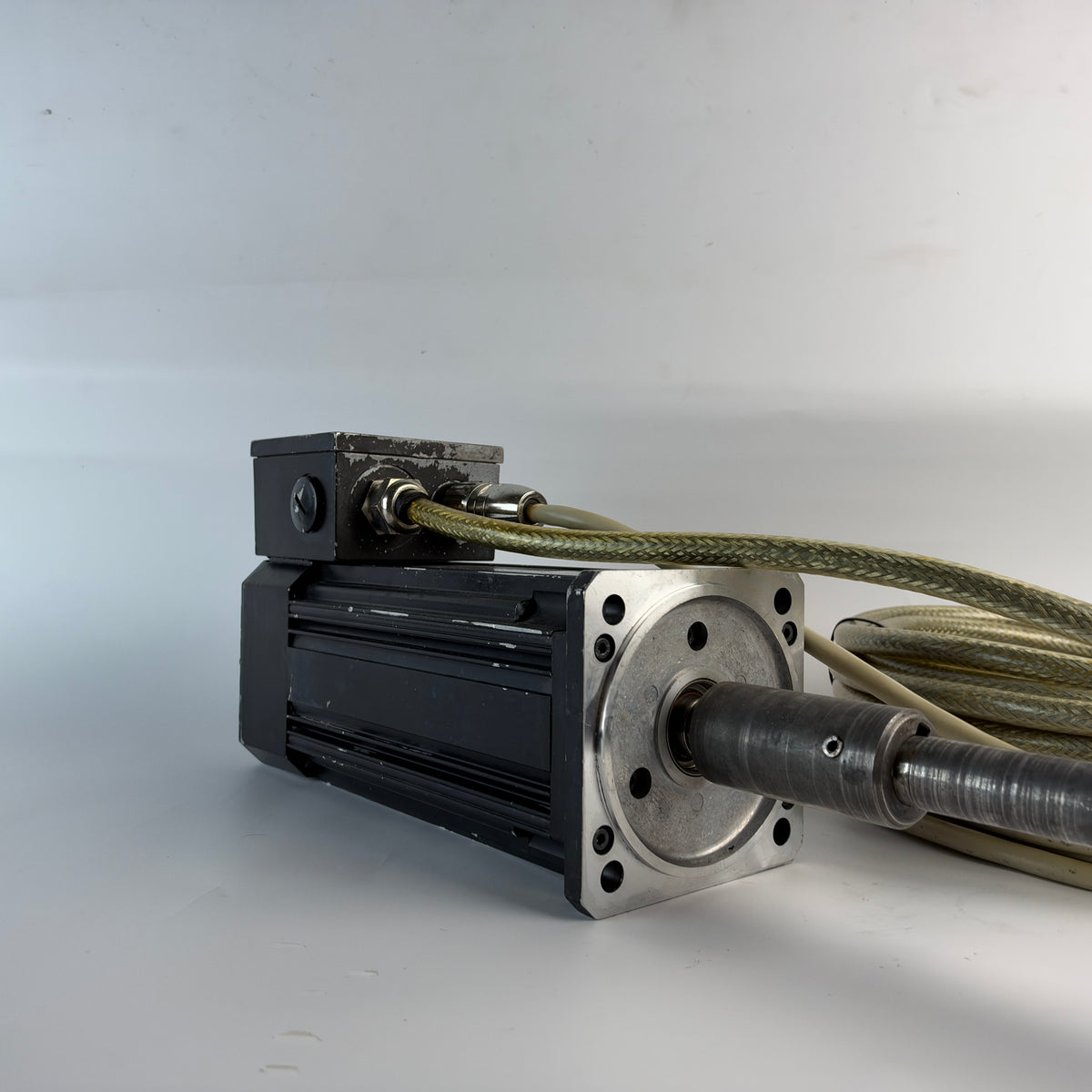

The motor has a flange mounting arrangement and an industrial metal housing.
Condition: Used, fully functional.
The housing shows visible cosmetic wear, including paint scratches and marks consistent with previous industrial use.
Important: Servo drive compatibility, connector pinout and the exact purpose of the shaft-mounted extension should be verified before installation.
