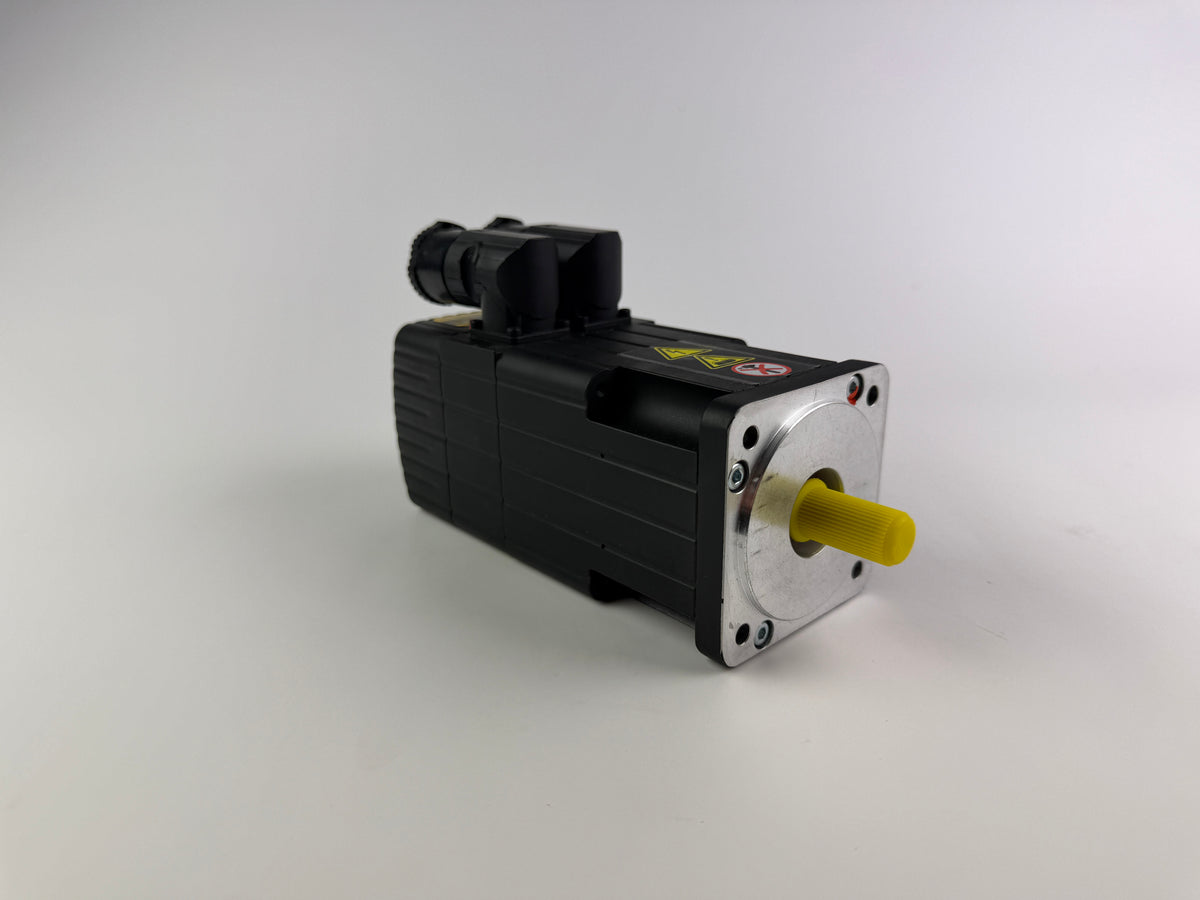

The MOOG G413-414A is a high-performance brushless servomotor from the G400 Series, designed for demanding industrial automation, CNC machinery, robotics, and precision motion systems.
It delivers 0.95 kW of power, fast dynamic response, and precise torque control, making it suitable for high-accuracy applications.

Rated for IP65 protection, this motor is built for harsh industrial environments, ensuring long service life and excellent reliability.

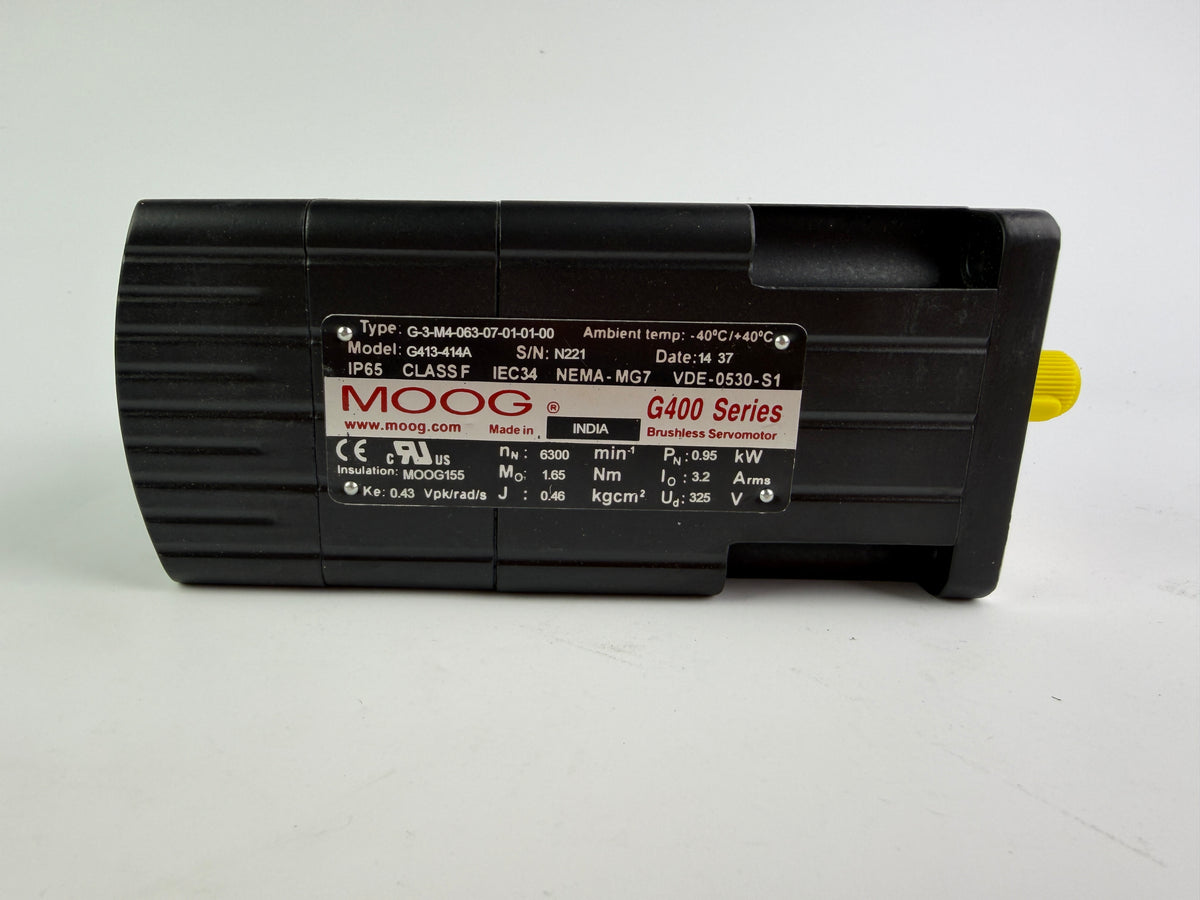

Technical Specifications:

• Model: G413-414A

• Type Code: G-3-M4-063-07-01-01-00

• Series: G400 Series

• Motor Type: Brushless Servomotor

• Power: 0.95 kW

• Speed: 6300 min⁻¹

• Torque (Mn): 1.65 Nm

• Peak Torque (Mo): 3.2 Arms

• Rotor Inertia (J): 0.46 kgcm²

• Back EMF Constant (Ke): 0.43 Vpk/rad/s

• Insulation: Class F (MOOG155)

• Protection: IP65

• Voltage (Ud): 325 V

• Ambient Temperature: -40°C to +40°C

Item condition: New, in perfect working condition.
