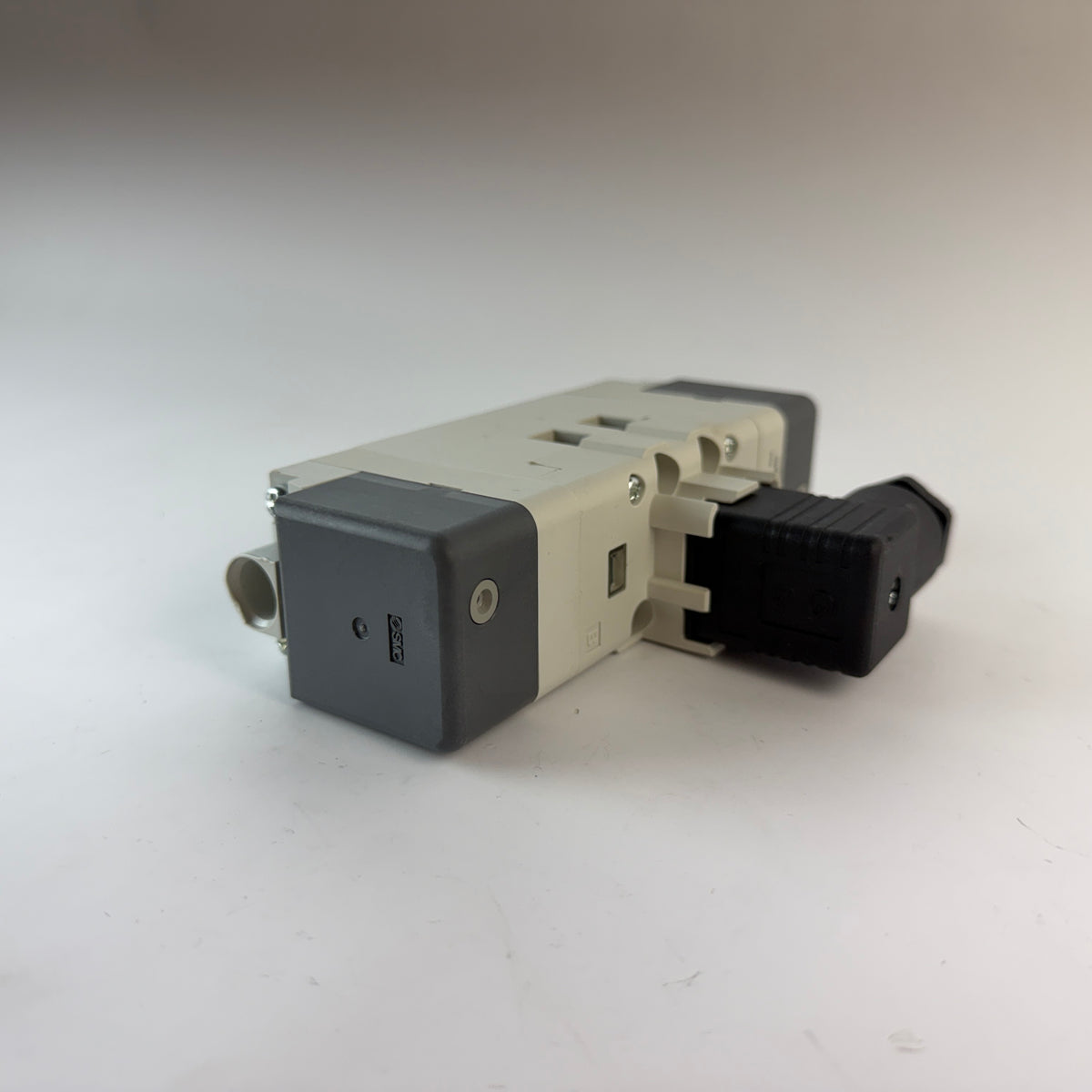

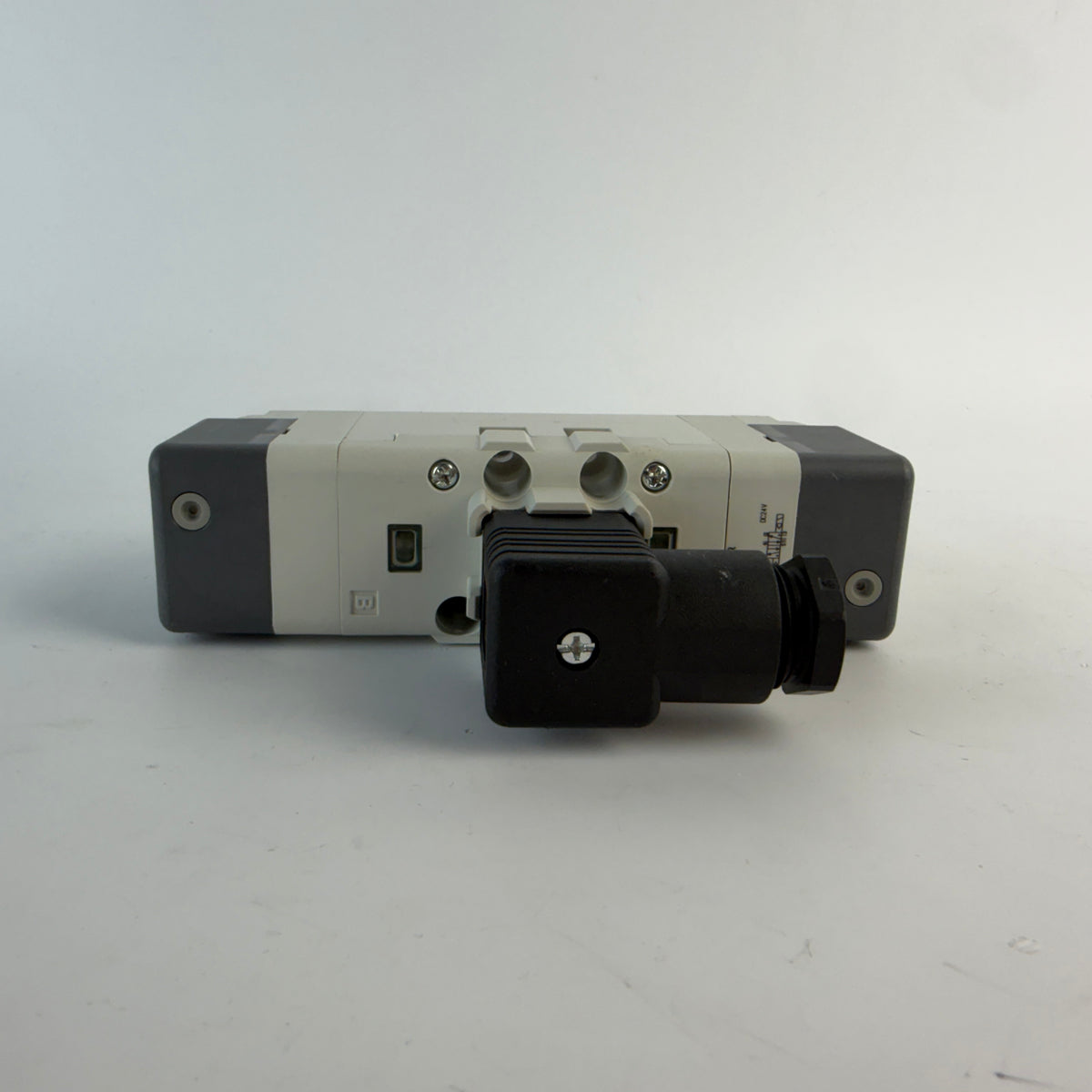

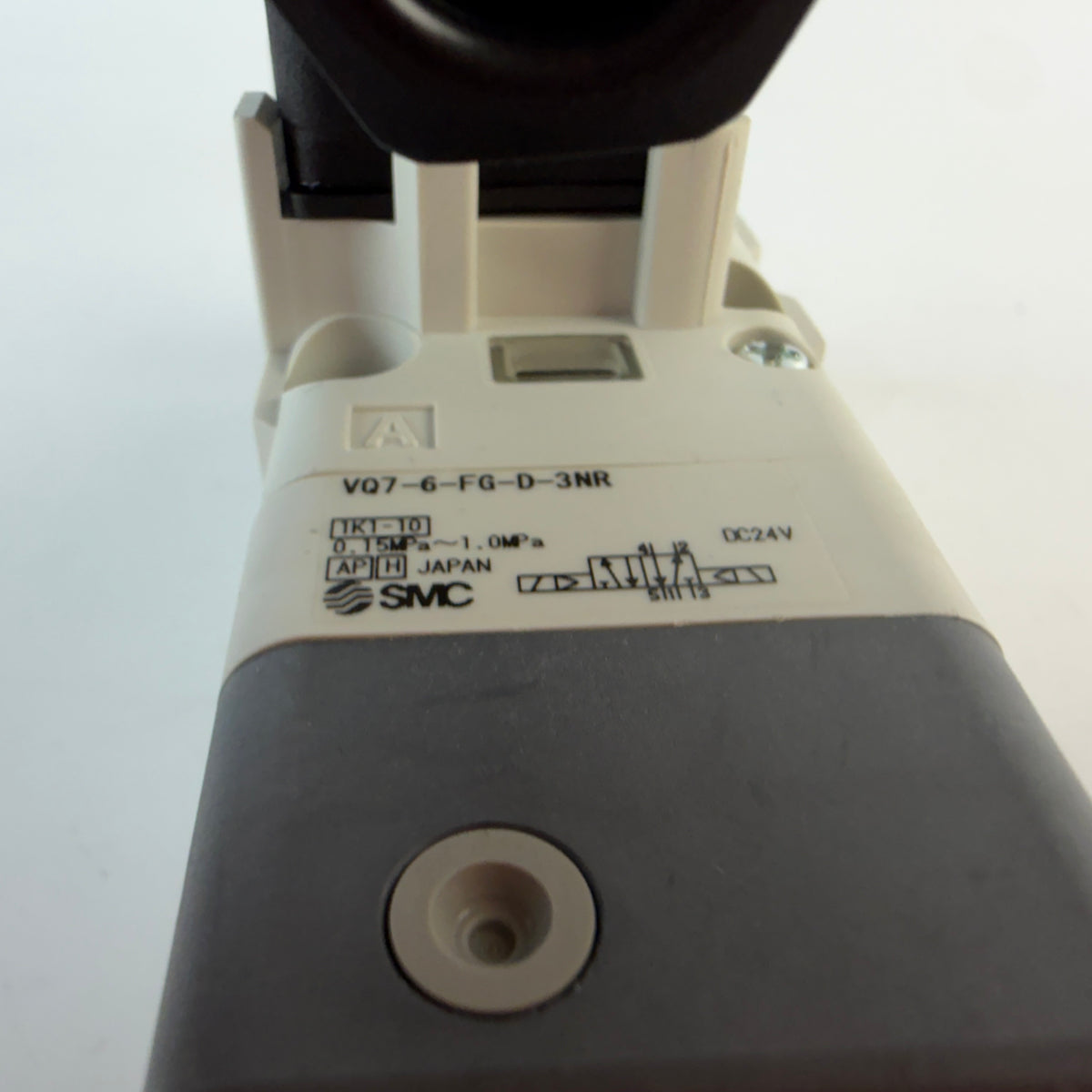

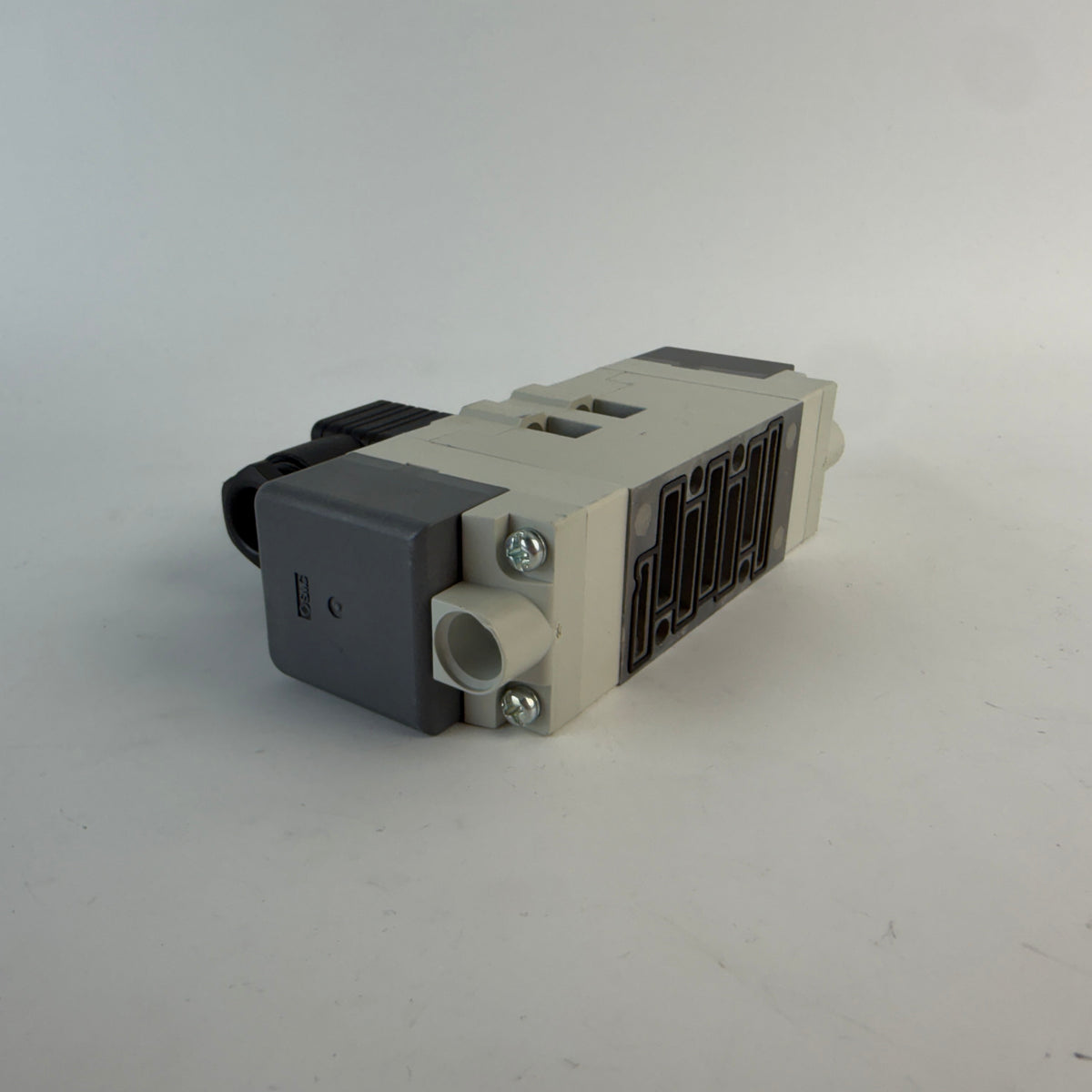

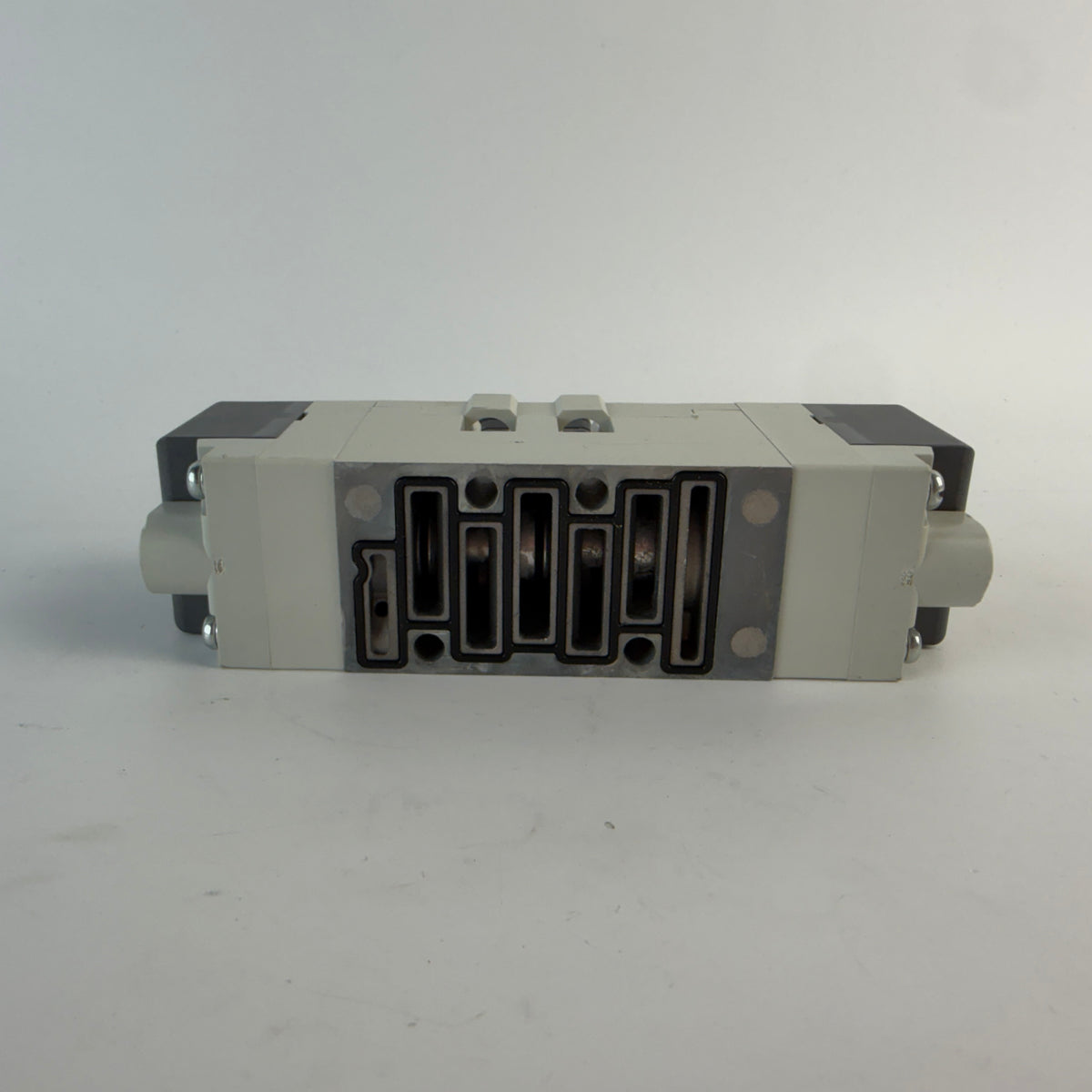

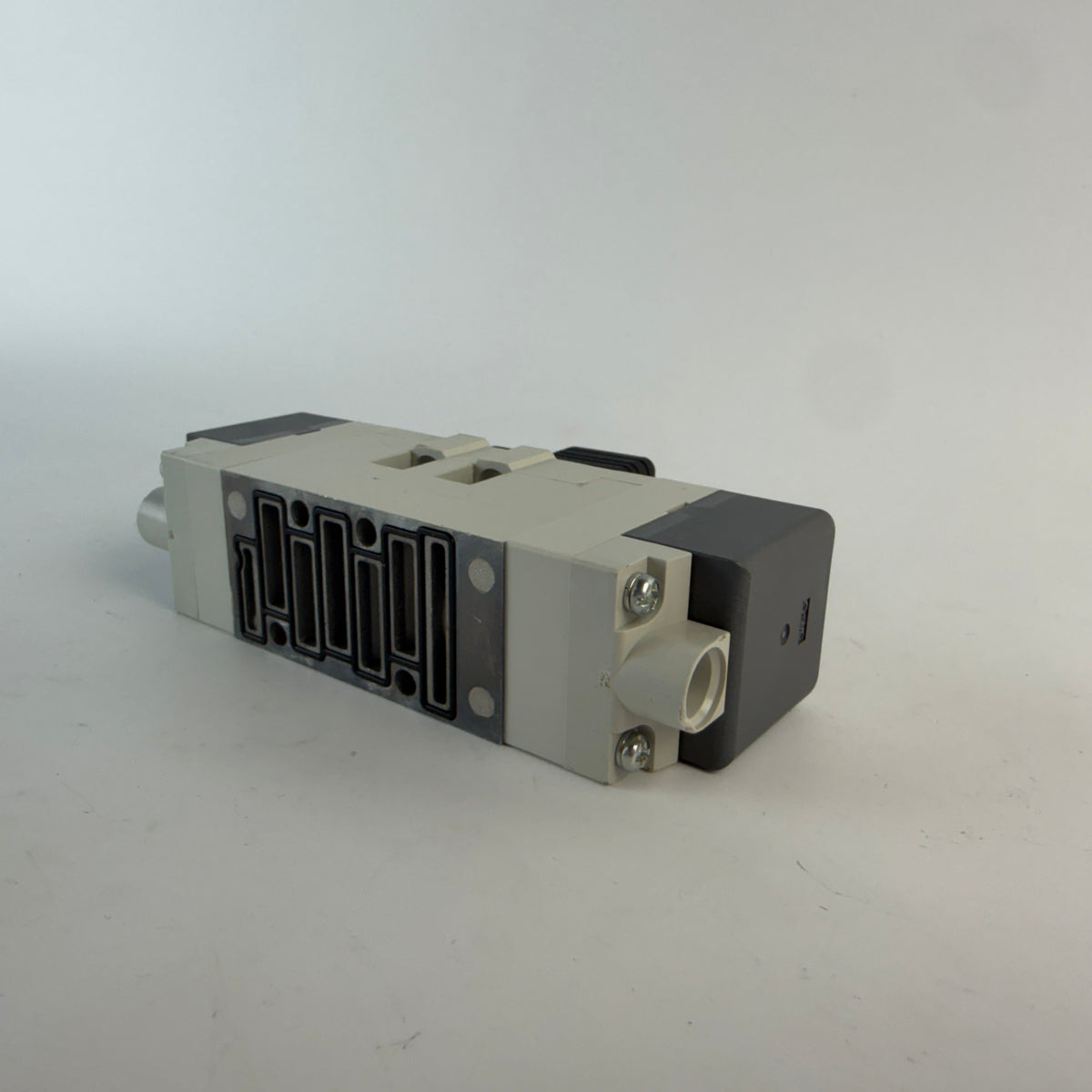

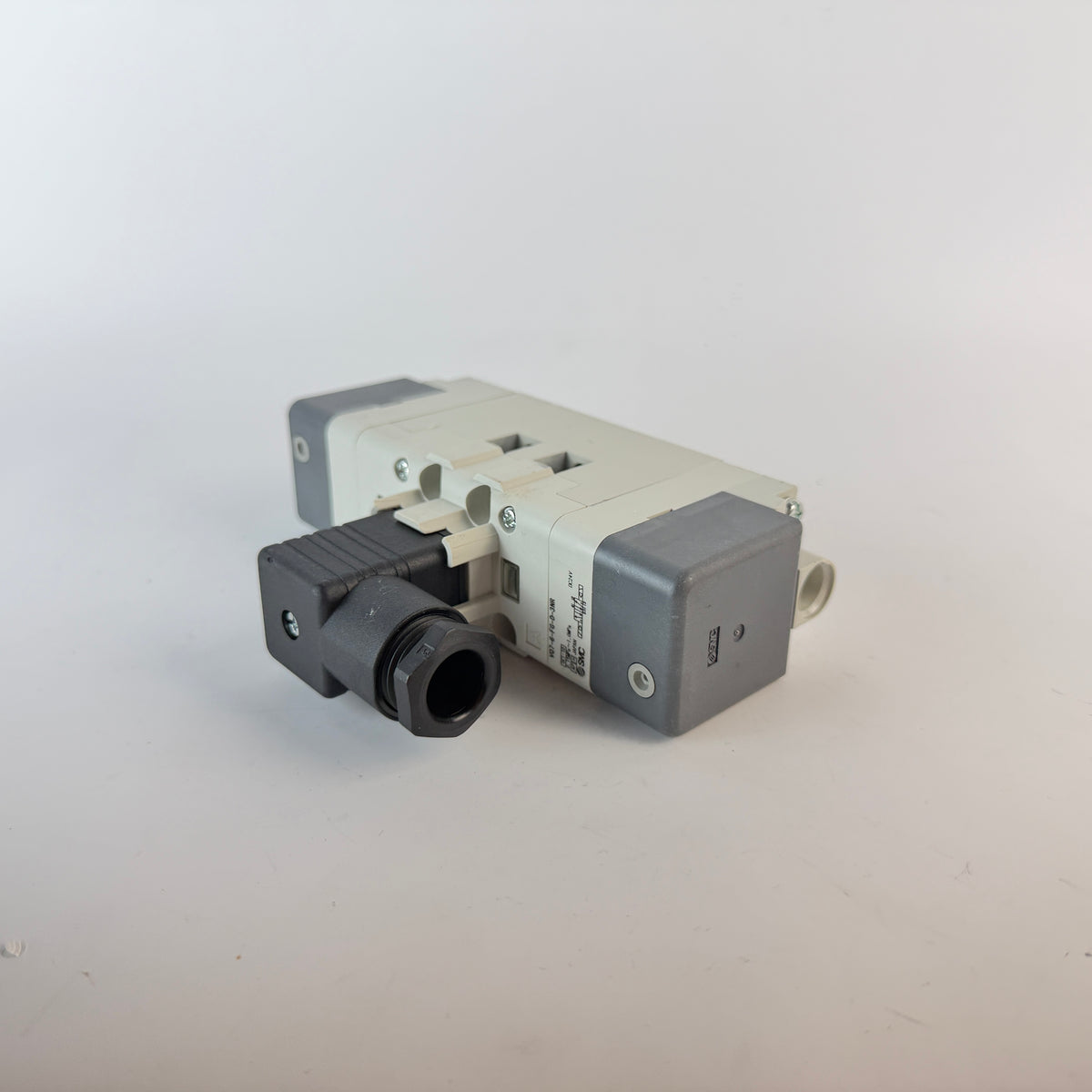

SMC VQ7-6-FG-D-3NR ISO standard pneumatic solenoid valve from the VQ7-6 Series, designed for industrial pneumatic control systems.

This configuration is a 5-port, 2-position valve with double-solenoid actuation. The valve operates from a 24 VDC electrical supply and uses a rubber seal design. It is equipped with a DIN terminal electrical connection and indicator light.

Technical specifications:

• Manufacturer: SMC
• Series: VQ7-6
• Model / MPN: VQ7-6-FG-D-3NR
• Valve type: ISO standard pneumatic solenoid valve
• Number of ports: 5
• Number of positions: 2
• Solenoid configuration: Double solenoid
• Rated coil voltage: 24 VDC
• Operating pressure: 0.15–1.0 MPa
• Operating medium: Air / inert gas
• Seal type: Rubber seal
• Electrical connection: DIN terminal block with connector
• Indicator light: Yes
• Pilot exhaust: Common exhaust
• Enclosure rating: IP65
• Response time: 15 ms or less
• Approximate weight: 0.45 kg
• ISO size: Size 1
• Country of Origin: Japan

Used, fully functional.

Suitable for controlling pneumatic actuators and other industrial compressed-air equipment.
